Controlando um robô utilizando o ESP32
- Eduardo Brennand Paranhos
- 29 de set. de 2024
- 5 min de leitura

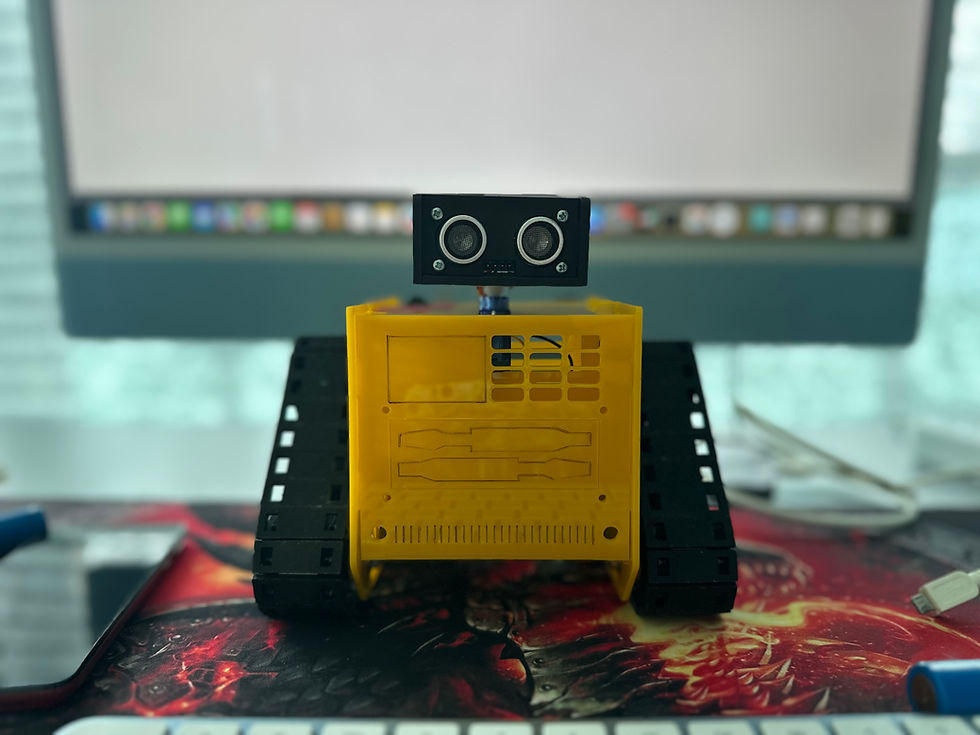

Neste post, iremos ver como controlar remotamente um robô utilizando motores DC e ESP32. Como exemplo, estaremos utilizando nosso mascote, o Rocky!
O rocky está conectado a uma placa vespa(temos post no blog a respeito dela). Conectado a placa, há dois motores DC amarelinhos, que controlam a esteira do robô. Como alimentação, estamos utilizando duas pilhas recarregáveis 18650.
Segue o código para fazer o seu robô funcionar:
#include <Arduino.h>
#ifdef ESP32
#include <WiFi.h>
#include <AsyncTCP.h>
#elif defined(ESP8266)
#include <ESP8266WiFi.h>
#include <ESPAsyncTCP.h>
#include <ESPAsyncWebServer.h>
#include <iostream>
#include <sstream>
struct MOTOR_PINS
{
int pinEn;
int pinIN1;
int pinIN2;
};
std::vector<MOTOR_PINS> motorPins =
{
{22, 14, 13}, //RIGHT_MOTOR Pins (EnA, IN1, IN2)
{23, 27, 4}, //LEFT_MOTOR Pins (EnB, IN3, IN4)
};
#define UP 1
#define DOWN 2
#define LEFT 3
#define RIGHT 4
#define STOP 0
#define RIGHT_MOTOR 0
#define LEFT_MOTOR 1
#define FORWARD 1
#define BACKWARD -1
const int PWMFreq = 1000; /* 1 KHz */
const int PWMResolution = 8;
const int PWMSpeedChannel = 4;
const char* ssid = "MyWiFiCar";
const char* password = "12345678";
AsyncWebServer server(80);
AsyncWebSocket wsCarInput("/CarInput");
const char* htmlHomePage PROGMEM = R"HTMLHOMEPAGE(
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no">
<style>
.arrows {
font-size:40px;
color:red;
}
td.button {
background-color:black;
border-radius:25%;
box-shadow: 5px 5px #888888;
}
td.button:active {
transform: translate(5px,5px);
box-shadow: none;
}
.noselect {
-webkit-touch-callout: none; /* iOS Safari */
-webkit-user-select: none; /* Safari */
-khtml-user-select: none; /* Konqueror HTML */
-moz-user-select: none; /* Firefox */
-ms-user-select: none; /* Internet Explorer/Edge */
user-select: none; /* Non-prefixed version, currently
supported by Chrome and Opera */
}
.slidecontainer {
width: 100%;
}
.slider {
-webkit-appearance: none;
width: 100%;
height: 20px;
border-radius: 5px;
background: #d3d3d3;
outline: none;
opacity: 0.7;
-webkit-transition: .2s;
transition: opacity .2s;
}
.slider:hover {
opacity: 1;
}
.slider::-webkit-slider-thumb {
-webkit-appearance: none;
appearance: none;
width: 40px;
height: 40px;
border-radius: 50%;
background: red;
cursor: pointer;
}
.slider::-moz-range-thumb {
width: 40px;
height: 40px;
border-radius: 50%;
background: red;
cursor: pointer;
}
</style>
</head>
<body class="noselect" align="center" style="background-color:white">
<h1 style="color: teal;text-align:center;">Mundo do Arduino</h1>
<h2 style="color: teal;text-align:center;">controle rocky</h2>
<table id="mainTable" style="width:400px;margin:auto;table-layout:fixed" CELLSPACING=10>
<tr>
<td></td>
<td class="button" ontouchstart='sendButtonInput("MoveCar","1")' ontouchend='sendButtonInput("MoveCar","0")'><span class="arrows" >⇧</span></td>
<td></td>
</tr>
<tr>
<td class="button" ontouchstart='sendButtonInput("MoveCar","3")' ontouchend='sendButtonInput("MoveCar","0")'><span class="arrows" >⇦</span></td>
<td class="button"></td>
<td class="button" ontouchstart='sendButtonInput("MoveCar","4")' ontouchend='sendButtonInput("MoveCar","0")'><span class="arrows" >⇨</span></td>
</tr>
<tr>
<td></td>
<td class="button" ontouchstart='sendButtonInput("MoveCar","2")' ontouchend='sendButtonInput("MoveCar","0")'><span class="arrows" >⇩</span></td>
<td></td>
</tr>
<tr/><tr/>
<tr/><tr/>
<tr/><tr/>
<tr>
<td style="text-align:left;font-size:25px"><b>Speed:</b></td>
<td colspan=2>
<div class="slidecontainer">
<input type="range" min="0" max="255" value="150" class="slider" id="Speed" oninput='sendButtonInput("Speed",value)'>
</div>
</td>
</tr>
</table>
<script>
var webSocketCarInputUrl = "ws:\/\/" + window.location.hostname + "/CarInput";
var websocketCarInput;
function initCarInputWebSocket()
{
websocketCarInput = new WebSocket(webSocketCarInputUrl);
websocketCarInput.onopen = function(event)
{
var speedButton = document.getElementById("Speed");
sendButtonInput("Speed", speedButton.value);
};
websocketCarInput.onclose = function(event){setTimeout(initCarInputWebSocket, 2000);};
websocketCarInput.onmessage = function(event){};
}
function sendButtonInput(key, value)
{
var data = key + "," + value;
websocketCarInput.send(data);
}
window.onload = initCarInputWebSocket;
document.getElementById("mainTable").addEventListener("touchend", function(event){
event.preventDefault()
});
</script>
</body>
</html>
)HTMLHOMEPAGE";
void rotateMotor(int motorNumber, int motorDirection)
{
if (motorDirection == FORWARD)
{
digitalWrite(motorPins[motorNumber].pinIN1, HIGH);
digitalWrite(motorPins[motorNumber].pinIN2, LOW);
}
else if (motorDirection == BACKWARD)
{
digitalWrite(motorPins[motorNumber].pinIN1, LOW);
digitalWrite(motorPins[motorNumber].pinIN2, HIGH);
}
else
{
digitalWrite(motorPins[motorNumber].pinIN1, LOW);
digitalWrite(motorPins[motorNumber].pinIN2, LOW);
}
}
void moveCar(int inputValue)
{
Serial.printf("Got value as %d\n", inputValue);
switch(inputValue)
{
case UP:
rotateMotor(RIGHT_MOTOR, FORWARD);
rotateMotor(LEFT_MOTOR, FORWARD);
break;
case DOWN:
rotateMotor(RIGHT_MOTOR, BACKWARD);
rotateMotor(LEFT_MOTOR, BACKWARD);
break;
case LEFT:
rotateMotor(RIGHT_MOTOR, BACKWARD);
rotateMotor(LEFT_MOTOR, FORWARD);
break;
case RIGHT:
rotateMotor(RIGHT_MOTOR, FORWARD);
rotateMotor(LEFT_MOTOR, BACKWARD);
break;
case STOP:
rotateMotor(RIGHT_MOTOR, STOP);
rotateMotor(LEFT_MOTOR, STOP);
break;
default:
rotateMotor(RIGHT_MOTOR, STOP);
rotateMotor(LEFT_MOTOR, STOP);
break;
}
}
void handleRoot(AsyncWebServerRequest *request)
{
request->send_P(200, "text/html", htmlHomePage);
}
void handleNotFound(AsyncWebServerRequest *request)
{
request->send(404, "text/plain", "File Not Found");
}
void onCarInputWebSocketEvent(AsyncWebSocket *server,
AsyncWebSocketClient *client,
AwsEventType type,
void *arg,
uint8_t *data,
size_t len)
{
switch (type)
{
case WS_EVT_CONNECT:
Serial.printf("WebSocket client #%u connected from %s\n", client->id(), client->remoteIP().toString().c_str());
break;
case WS_EVT_DISCONNECT:
Serial.printf("WebSocket client #%u disconnected\n", client->id());
moveCar(STOP);
break;
case WS_EVT_DATA:
AwsFrameInfo *info;
info = (AwsFrameInfo*)arg;
if (info->final && info->index == 0 && info->len == len && info->opcode == WS_TEXT)
{
std::string myData = "";
myData.assign((char *)data, len);
std::istringstream ss(myData);
std::string key, value;
std::getline(ss, key, ',');
std::getline(ss, value, ',');
Serial.printf("Key [%s] Value[%s]\n", key.c_str(), value.c_str());
int valueInt = atoi(value.c_str());
if (key == "MoveCar")
{
moveCar(valueInt);
}
else if (key == "Speed")
{
ledcWrite(PWMSpeedChannel, valueInt);
}
}
break;
case WS_EVT_PONG:
case WS_EVT_ERROR:
break;
default:
break;
}
}
void setUpPinModes()
{
//Set up PWM
ledcSetup(PWMSpeedChannel, PWMFreq, PWMResolution);
for (int i = 0; i < motorPins.size(); i++)
{
pinMode(motorPins[i].pinEn, OUTPUT);
pinMode(motorPins[i].pinIN1, OUTPUT);
pinMode(motorPins[i].pinIN2, OUTPUT);
/* Attach the PWM Channel to the motor enb Pin */
}
moveCar(STOP);
}
void setup(void)
{
setUpPinModes();
Serial.begin(115200);
WiFi.softAP(ssid, password);
IPAddress IP = WiFi.softAPIP();
Serial.print("AP IP address: ");
Serial.println(IP);
server.on("/", HTTP_GET, handleRoot);
server.onNotFound(handleNotFound);
wsCarInput.onEvent(onCarInputWebSocketEvent);
server.addHandler(&wsCarInput);
server.begin();
Serial.println("HTTP server started");
}
void loop()
{
wsCarInput.cleanupClients();
} // o codigo acaba aqui
Esse código basicamente cria uma rede myWiFicar, ao qual você deve se conectar. Após isso, escreva 192.168.4.1 em seu navegador, e você será redirecionado para uma página web em que você poderá controlar o robô:
